The sensor is a passive infrared sensor, which detects (monitors) infrared rays (warmth) emitted by the objects that fall into its detection range. The sensor turns on /off the load, connected to it, depending on the change of the thermal background in the detection area. This is why it is not recommended to install the sensor in areas with great temperature amplitude – near air conditioners or heaters. Infrared sensors are normally used as motion sensors. The sensor is designed for buildin-in.

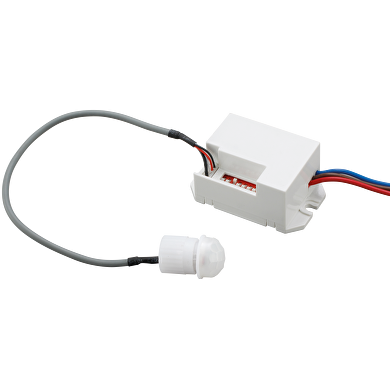

SDMP12 is a PIR sensor with 12/24V DC operating voltage. It has an IP20 protection rate. It tracks the movement(s) in the controlled zone and switches on/off the lighting.
| Protection rating | |
|---|---|
| Working temperature range | -20 ⁰C ÷ +40 ⁰C |
| Mounting hole | 12mm |
| Detection distance | |
| Installation height | 1.8 – 2.5m |
| Ambient light | |
| Detection range | |
| Self consumption | 0.5W |
| Warranty | |
| Detection moving speed | 0.6-1.5m/s |
| Working humidity | <93% |
| Max output power DC | 60/120W |
| Voltage DC | 12/24V |
