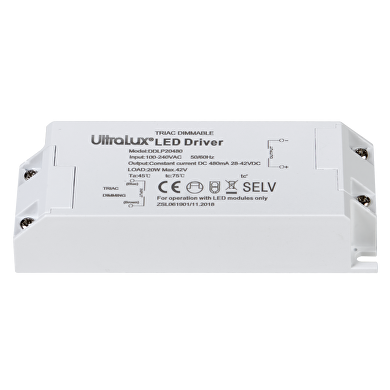

The TRIAC driver is designed to control (on, off and dim) LED luminaires with constant current power supply . Works with Leading Edge / Trailing Edge dimmers. The driver is flicker-free and has a power factor PF> 0.9. Suitable for LED downlights with indirect light UlatrLux with power 20W. Compatible with TRIAC dimming switches for RC load. Make sure the driver is not covered and have space around it for good heat desipation!
| Max output power DC | 20W |
|---|---|
| Dimmable | |
| Dimensions | 110/42/25mm |
| Warranty | 2 years |
| Input voltage AC | 220~240V |
| Frequency | 50~60Hz |
| Power factor | >0.9 |
| Output current | 480mA |
| Max output voltage DC | 28-42V |
| Protection rating | |
| Working temperature range | -10 °C ~ +40 °C |
| Dimming range | 0-100% |
| Control type | TRIAC control |
| Flicker | Flickerless |
